Name: 10K NTC Thermistor High Sensitivity Enameled Wire Temperture Sensor for Laptop Battery
Brand: Shenzhen Hwalon Electronic Co., Ltd.
SKU: 10 mila.
Price: 0.09 USD
Availability: InStock

Casa Prodotti Sensore di temperatura del termistore di NTC

10K NTC Thermistor High Sensitivity Enameled Wire Temperture Sensor for Laptop Battery

Dettagli:

Luogo di origine:	Cina
Marca:	HWALON
Certificazione:	CE
Numero di modello:	10 mila.

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1000pcs
Prezzo:	0.09-0.15USD
Imballaggi particolari:	Cartoni
Tempi di consegna:	7-15 giorni
Termini di pagamento:	T/T, Western Union
Capacità di alimentazione:	100000pcs/giorno

Contatto

Descrizione di prodotto dettagliata

Tipo:	NTC Termistor	Stile:	Tipo di vetro o epossidico
Tolleranza:	1%, 2%, 3%, 5%	Valore di B:	3380, 3435, 3950, 3977
Utilizzo:	HVAC, medico, automobilistico, elettrodomestici
Evidenziare:	10K NTC thermistor temperature sensor , enameled wire thermistor for laptop battery , high sensitivity NTC temperature sensor

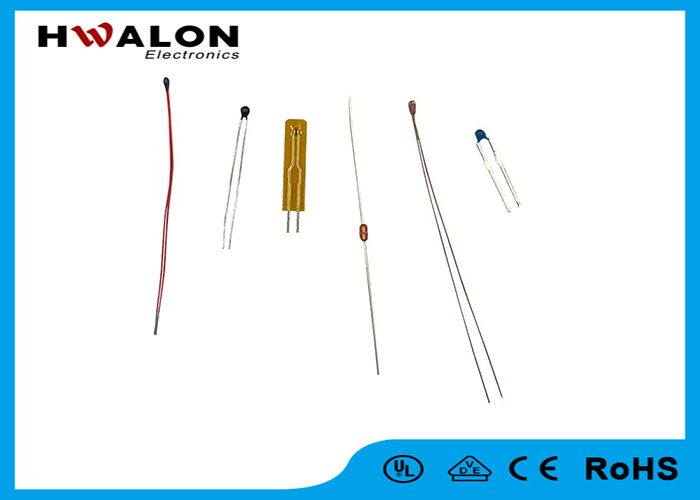

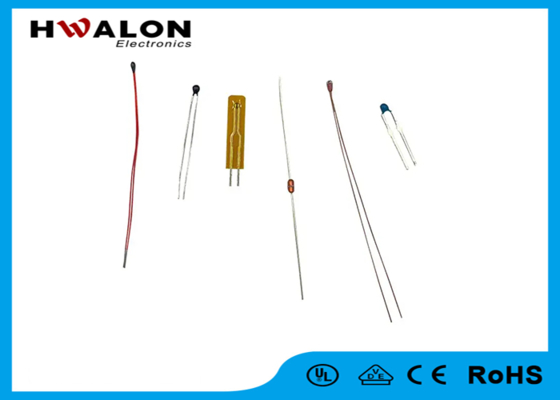

10K NTC Thermistor High Sensitivity Enameled Wire Temperture Sensor for Laptop Battery

Product Information:

NTC offer many advantages in temperature sensing including miniature size, excellent long-term stability, high accuracy and precision.

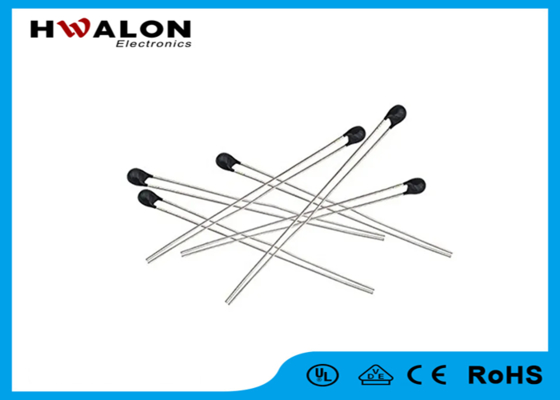

Enamel wire epoxy coated insulated wire NTC thermistor, also known as insulation coating wire NTC thermistor or small head diameter enamel wire NTC thermistor, is a small, high-precision chip and enamel copper wire insulated polymer coating, coated with epoxy resin, with bare tin plated enamel copper lead NTC interchangeable thermistor chip.

Leaded thermistors are used for temperature compensation/detection in battery packs, medical instruments, home electronics, automobiles, and many other applications. We manufacture both epoxy coated and glass encapsulated thermistors.

Product size reference

1: Head size: 1.0mm~3.0mm (customized )
2: Wire diameter: 0.18mm~0.3mm(customized )
3: Wire length: 10mm~150mm (customized )

Features
◆ Epoxy and glass encapsulation available.
◆ High accuracy / interchangeability.
◆ Custom size and wire configuration.
◆ Fast thermal response time.
◆ Proven long-term stability and reliability.
◆ Available in temperature ranges from -40ºC to +250ºC.
◆ Tailored resistance versus temperature.

Options
◆ Special lead materials and lengths.
◆ Special encapsulants or probe housings.
◆ Non-standard resistance values and tolerances.
◆ Point matched at specified temperatures.

PARAMETER	OPTIONS	UNIT
Resistance @ 25°C	1, 4.7, 5, 8, 10, 12, 20, 30, 47, 50, 100, 1000	kohms
Resistance Tolerance	1, 2, 3, 5	%
Beta Value	3435, 3950, 3977, 3984, 4000	K
Temperature Range	-40 to +150; -40 to +250	°C
Thermal Time Constant	< 10	s
Temperature Coefficient Resistance	-4.4	%/°C
Max Power	30	mW
Dissipation Constant (in air)	2	mW/K

Application:

◆ Ambient temperature sensing, control and compensation.
◆ Liquid or gas temperature control and monitoring.
◆ Assembly into probes.
◆ Automotive (Air Conditioning, Cabin Climate Control/Management, Heated Seats).
◆ Industrial applications.
◆ Computer and Communications Industry.
◆ HVAC, White Goods

FAQ:

1. How can I get samples?

Discuss to one of our sales, tell him or her your requirements. After confirmed details, we will arrange samples production. Customer need to pay for shipping cost. (Check with sales whether your samples can be free)

2. When can I receive samples?

Normally it takes 15-30 days to produce samples.

3. How to pay?
We accept Telegraphic Transfer and Trade Assurance. Negotiate with sales if you have questions.

4. Do you accept customized?
Yes, we accept ODM&OEM. Products can be customised upon customer's requirements.

5. How long is your lead time?
Generally, 2-3 weeks for regular products. Sometimes, it needs more time to prepare materials and do more tests to ensure products' accuracy.
