PTC air heater 220V 113x35x26mm 100W ceramic Heating Element for HVAC Systems & Dryers Space Heaters - Compatible with Tower, Kickspace & Desktop Types, Flat or Small Corrugated Design

MOQ:	500pcs
prezzo:	4-5usd/pcs
Imballaggio standard:	Cartoni
Periodo di consegna:	7-15 GIORNI
Metodo di pagamento:	T/T, Western Union
Capacità di alimentazione:	10000pcs/giorno

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine

Marca

HWALON

Certificazione

Numero di modello

220V 113x35x26mm 100W

Materiale:

Cassa in alluminio + pellicola isolante

Voltaggio:

220 V

Misurare:

113x35x26mm

Energia:

Applicazione:

Sistemi HVAC ed essiccatori

Descrizione di prodotto

PTC air heater 220V 113x35x26mm 100W ceramic Heating Element for HVAC Systems & Dryers Space Heaters - Compatible with Tower, Kickspace & Desktop Types, Flat or Small Corrugated Design

Feature:

This PTC air heating element is engineered for high efficiency and reliable performance, ideal for integrating into space heaters (tower, kickspace, desktop), HVAC systems, air curtains, and industrial drying equipment. It leverages advanced PTC (Positive Temperature Coefficient) technology to deliver stable heating while minimizing energy consumption, making it a cost-effective and safe solution for both residential and commercial heating needs.

1. Rated Voltage: 220V

2. Rated Power: 100W (R=24℃,5m/s wind flow velocity)

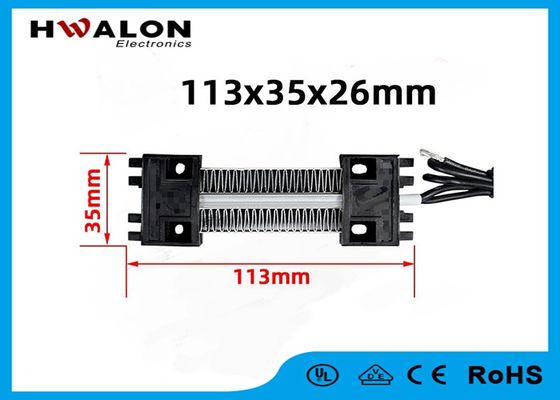

3. Dimension: 113x35x26mm

Product Name	PTC Air Heater(PTC Heater Heating Element)
Heat Material	PTC Thermistor
Heat Methods	Heat Radiation by Air Flow
Lead Wire	Silicone High Temperature Line
the Length of Lead Wires	200mm
the Length of Bare Wires	10mm
Surface Insulate	Yes
Application	Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier/PTC Heater Heating Element

Instruction manual:

1, The power line does not distinguish between positive and negative, you can freely link power 220V.

2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.

3, Can be placed under a wet environment, but can not be placed in water.

4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.

5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

6, Both ends of the product wearing bracket (PA66 high temperature nylon)

7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.

8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!

Application:

Home Heating,Commercial Temperature Control,Industrial Heating

PTC air heater 220V 113x35x26mm 100W ceramic Heating Element for HVAC Systems & Dryers Space Heaters - Compatible with Tower, Kickspace & Desktop Types, Flat or Small Corrugated Design 0
